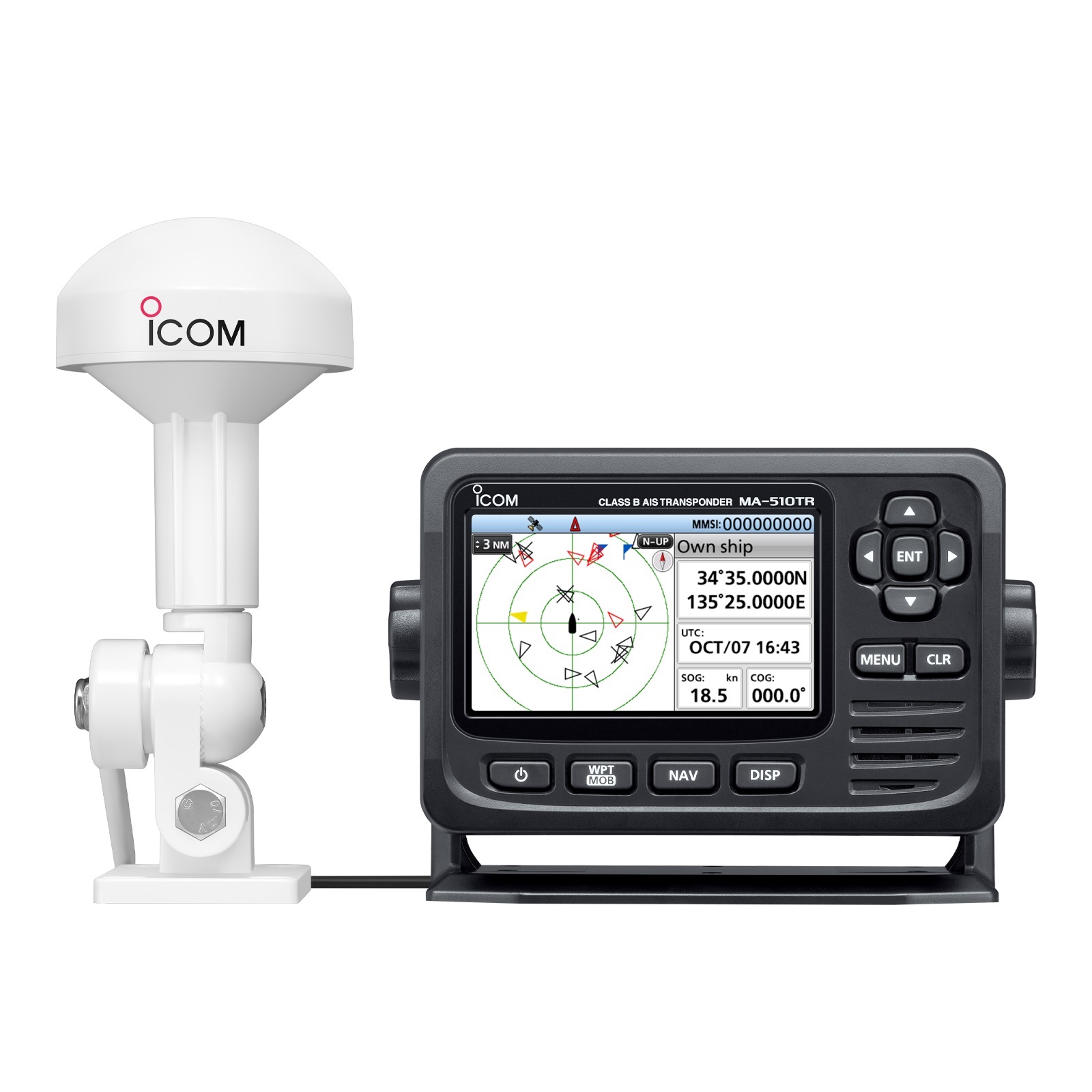

Icom MA510TR Class B AIS

Name: Icom MA510TR Class B AIS
Brand: Icom
SKU: WT-ICOMA510TR13
Availability: InStock

Original price was: $1,731.38.Current price is: $1,559.80.

8 in stock

Add to compare

Add to wishlist

SKU: WT-ICOMA510TR13 Category: AIS Systems

The Icom MA510TR 13 is a Class B AIS Transponder with GPS navigation function, NMEA 2000 connectivity, and collision alarm. Ideal for outboard lower unit, this feature-packed transponder provides enhanced safety and informed navigation.

Description
Additional information

Description

Icom MA-510TR Class B AIS Transponder

Model: MA-510TR 13

Collision Alarm Function
Anchor Watch Alarm
Man Overboard
Individual DSC Call available with a compatible Icom VHF with an accessory cable
USB connectivity
Multi-lingual user interface
12V and 24V compatible

The Class B AIS Transponder with GPS navigation function and NMEA 2000™-connectivity and receives both A and B AIS signals. With both A and B AIS signals, the range of detection increases safety. Leisure, fishing or cruising vessels can stay safe and informed on the open sea with this feature-packed transponder.

The MA-510TR comes with a 4.3″ color TFT LCD. The wide-viewing angle screen provides clear navigation details such as potential collision vessels marked as red, and registered friends marked as yellow. All vessels that are within 6NM CPA and 60 minutes TCPA from a vessel are put into a respective danger or friend list. The day-mode function allows visibility in direct sunlight. Night-mode provides optimal viewing brightness for comfortable operation.

The built-in GPS Navigation function guides users to waypoints or AIS targets. Assign up to 100 destinations or fishing spots.

Operate securely and privately with the silent mode function. Switch off the AIS transmitter to temporarily stop sending out position location. Other AIS signal reports art still received when silent mode is on. Keep fishing spots privately from other vessels by utilizing silent mode.

The MA-510TR can connect to both NMEA 2000™ and NMEA 0183/-HS. Connect to a NMEA 2000™ network such as an external plotter, marine radar and VHF radios. With NMEA 0183/-HS, connect to a transceiver, plotter device, marine radar, external GPS receiver and a switch button.

Specifications

General
Frequency coverage	161.500 MHz to 162.025 MHz
Type of emission	16K0GXW (GMSK)
Antenna impedence	50 Ohms nominal
Operating temperature range	-20°C to +60°C; -4°F to +140°F
Power supply requirement	Negative ground: 12V or 24V DC nominal (9.6V to 31.2V)
Current drain (at 12V DC)	tx – 1.5A Rx – 0.7A
Dimensions (approximate) (Projections not included)	6.5 (W) 4.3 (H) 3.6 (D) inches
Transmitter
Output power	2W
Modulation	16K0GXW (GMSK)
Conducted spurious emission	Less than —36 dBm (9 kHz—1 GHz) Less than —30 dBm (1 GHz—4 GHz)
Receiver (AIS)
Sensitivity	Less than —110 dBm
Adjacent channel selectivity	More than —31 dBm
Spurious response	More than —31 dBm
Intermodulation	More than —36 dBm
Conducted spurious emissions	Less than —57 dBm (9 kHz—1 GHz) Less than —47 dBm (1 GHz—4 GHz)
Blocking	More than —15 dBm (±0.5 MHz ±5 MHZ) More than —23 dBm (±5 MHz — ±10 MHz)
Co-channel	More than -111 dBM
Receiver (DSC)
Frequency coverage	156.525 MHz
Type of emission	16K0G2B
Sensitivity	Less than —110 dBm
Adjacent channel selectivity	More than 70 dBm
Spurious response	More than -34 dBm
Intermodulation	More than -39 dBm
Blocking	More than -20 dBm
GPS Antenna
Received frequency	1575.42 MHz
Acquisition	72 ch (maximum)
Differential satellites	WAAS, EGNOS, MSAS, GAGAN
Dimensions (approximate)	96.2 225 (H) mm, 3.8 8.9 (H) inches
Cable length (approximate)	32.8 ft
Data Interface
USB (Type-B Mini)	GGA, GNS, GLL, GSA, GSV, RMC, VTG, VDM, VDO, ACA, ACS, ALR, TXT
NMEA 2000™ Input	059392/904, 060160/416/928, 065240, 126208/996, 129026/029/545
NMEA output	059392/904, 060416/928, 126208/464/993/996/998, 129026/029/038/039/040/041/539/540/545/792/793/794/797/798/801/802/803/805/806/807/809/810/811
NMEA 0183 NMEA Input/Outpu	4800—38400 bps Input/Output, sentence format (Output: GGA, GNS, GLL, GSA1, GSV1, RMC, VTG, GBS, DTM, DSC)
External GPS Input	4800—38400 bps Input, sentence format (GGA, GNS, GLL, RMC, VTG, GBS*2, DTM)
AIS Output	38400 bps Output, sentence format (VDM, VDO, ACA, ACS, ALR, TXT)
*1 Only 38400 bps.
*2 When a received GPS signal does not include a GBS sentence, the transponder will not receive the signal from the external GPS receiver
