Blue Sea Panel Enclosure 120v AC 30A ELCI Main Surface Mount System
$690.02
MFG: 3116-BSS
2 in stock
SKU:
WT-BSS3116
Categories: Breakers & Panels, Breakers & Panels, Electrical, Electrical & Lighting, WT
Tags: Breakers & Panels, Electrical, Electrical & Lighting

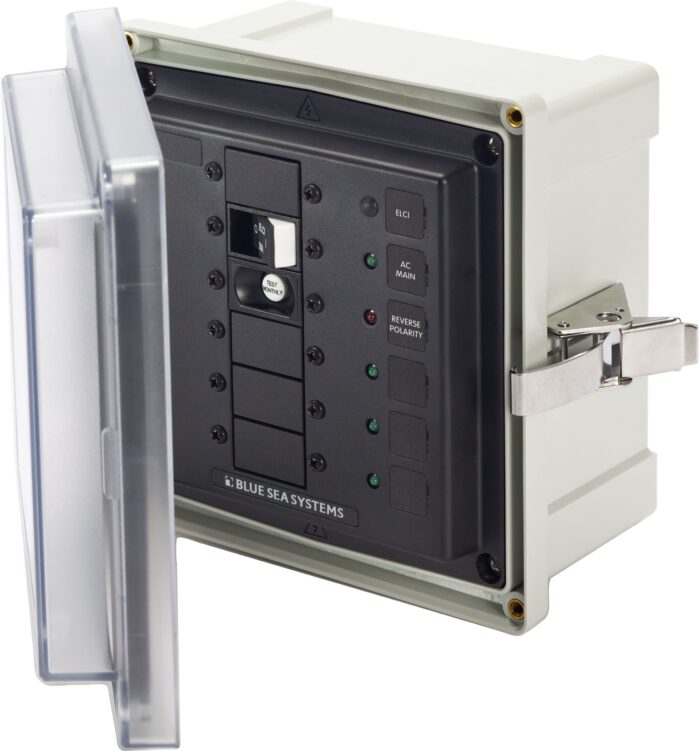

Blue Sea SMS Surface Mount System Panel Enclosure – 120V AC / 30A ELCI Main – 3 blank circuit positions
Model: 3116-BSS
- Includes one 120V AC / 30A ELCI Main and three blank positions
- Blank apertures for custom breaker loading
- Glass filled polycarbonate mounting box
- Glass filled polycarbonate mounting box
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
- Stainless steel mounting hardware included
- Includes waterproof glands
- LED lights for back lighting and ON indication
Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet
Specifications
Minimum Operating Temperature | -40° C |
Maximum Operating Temperature | 85° C |
Cover Screws and Hardware | 10-32 Stainless Steel |
Enclosure Size | 6.0″ x 6.0″ x 4.0″ |
Exterior Overall Dimensions | 7.6″ x 7.4″ x 4.7″ |
Mounting Hardware | 1/4″ Diameter, #12 (6 mm) |
What’s in the Box:
- SMS Enclosure
- # 3124 Gland for #14-10 wire x 2
- #3125 Gland for #14-10(3 Conductor) wire x 3
- #4206 AC Label Kit
- AC Main Label
- ELCI Label
- 310210 ELCI Breaker 120 VAC 30A
- # 8034 LED – 120V AC Green (ON Indicating) x 4
- # 8066 LED – 120V AC Red (Reverse Polarity Indicating)
Weight | 7 lbs |
---|
Brand
Blue Sea Systems
