$1,326.45 Original price was: $1,326.45.$1,195.00Current price is: $1,195.00.

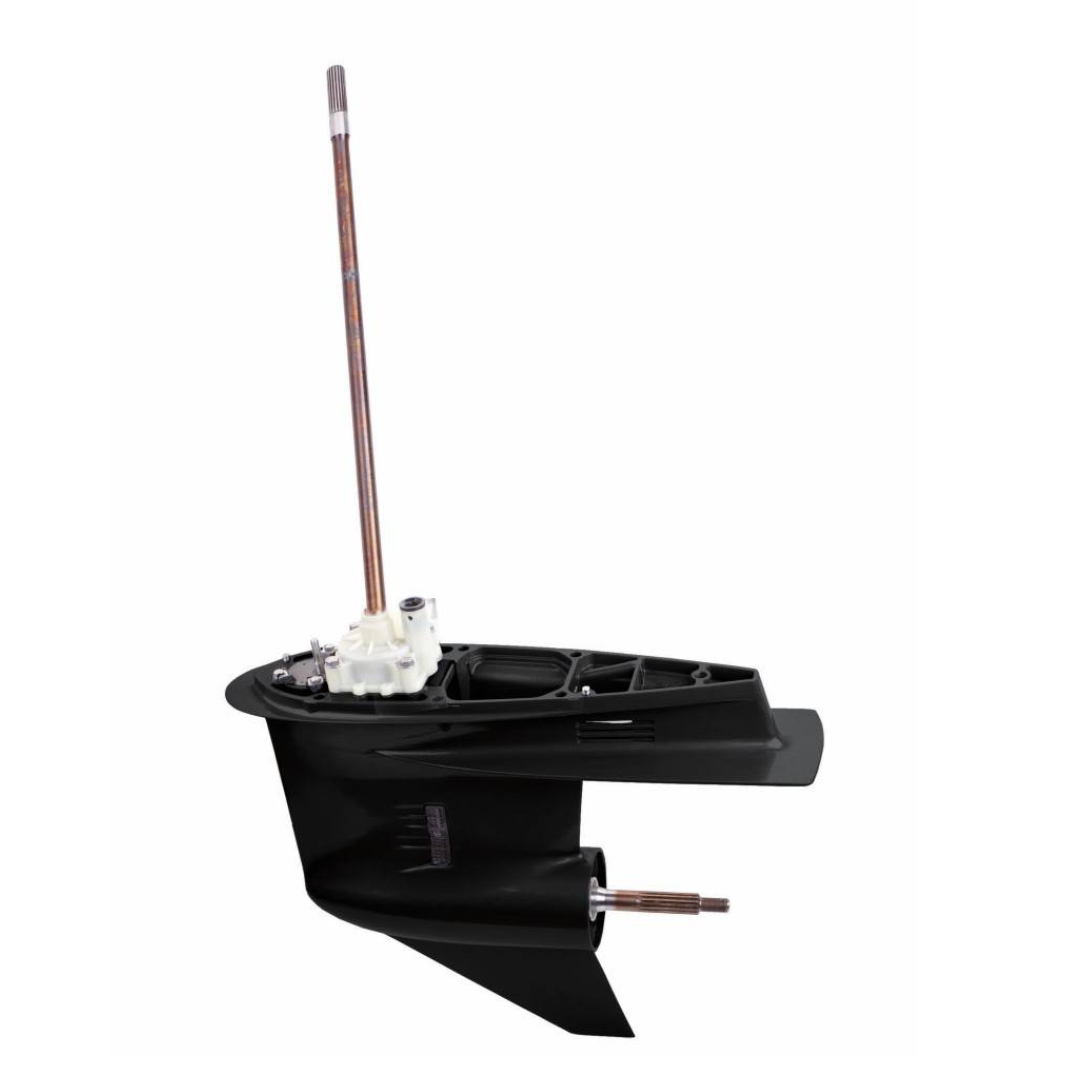

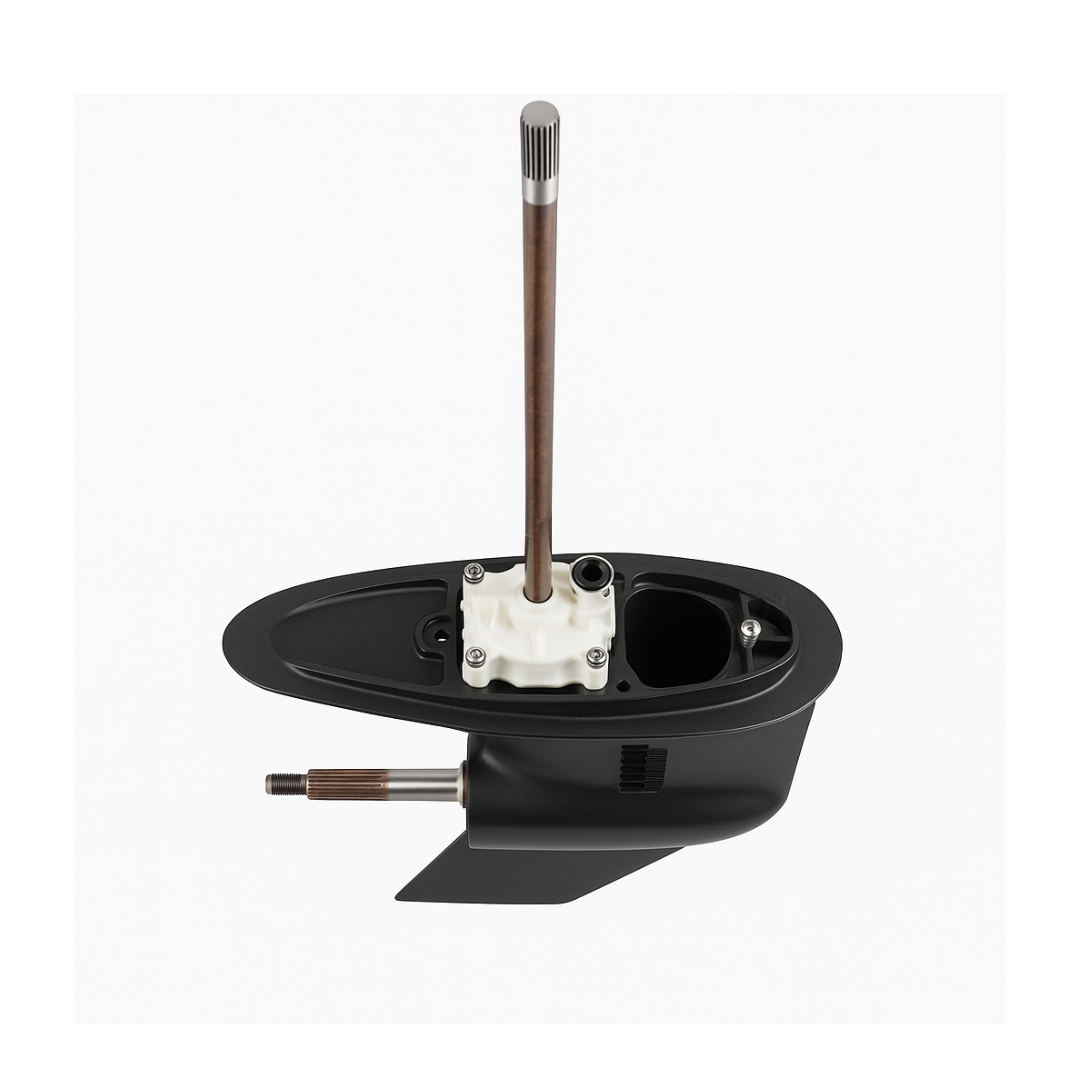

“Yamaha 90 Degree 150-200 HP Outboard Lower Unit (416) – A brand-new, high-performance lower unit replacing Yamaha 90-degree V6 2-stroke up to 200 HP and some inline 4-cylinder 4-stroke 150 HP outboard motors, ensuring quality and efficiency.”
Search your model no. for perfect fit
✔️
Manufacturer Warranty: 3-Year
✔️
Return Policy: 7 – 14 day, hassle-free returns
✔️
Trusted by 6,000+ boaters across the USA
Replaces most Yamaha 90 Degree V6 2-Stroke and some inline 4 cylinder 4-Stroke engines
The paint color is Black. You can paint it to match.
Replaces the gear case on most Yamaha 90 Degree V6 2.6 Liter
2-Stroke Engines with 20 inch drive shaft.
| Year | Model Number | Shaft | Gear Ratio | SEI part number |
|---|---|---|---|---|
| 2012 | VZ175TLR | 20 | 1.86:1 | 90-416-A20 |
| 2011 | VZ175TLR | 20 | 1.86:1 | 90-416-A20 |
| 2010 | VZ175TLR | 20 | 1.86:1 | 90-416-A20 |
| 2009 | VZ175TLR | 20 | 1.86:1 | 90-416-A20 |
| 2008 | VZ175TLR | 20 | 1.86:1 | 90-416-A20 |
| 2007 | VZ175TLR | 20 | 1.86:1 | 90-416-A20 |
| 2006 | VZ175TLR | 20 | 1.86:1 | 90-416-A20 |
| 2005 | VZ175TLRD | 20 | 1.86:1 | 90-416-A20 |
| 2005 | Z200TLRD | 20 | 1.86:1 | 90-416-A20 |
| 2004 | VZ175TLRC | 20 | 1.86:1 | 90-416-A20 |
| 2004 | VZ200TLRC | 20 | 1.86:1 | 90-416-A20 |
| 2003 | Z150TLRB | 20 | 1.86:1 | 90-416-A20 |
| 2003 | VZ175TLRB | 20 | 1.86:1 | 90-416-A20 |
| 2003 | VZ200TLRB | 20 | 1.86:1 | 90-416-A20 |
| 2002 | Z150TLRA | 20 | 1.86:1 | 90-416-A20 |
| 2002 | VZ175TLRA | 20 | 1.86:1 | 90-416-A20 |
| 2002 | VZ200TLRA | 20 | 1.86:1 | 90-416-A20 |
| 2001 | Z150TLRZ | 20 | 1.86:1 | 90-416-A20 |
| 2001 | Z175TLRZ | 20 | 1.86:1 | 90-416-A20 |
| 2001 | Z200TLRZ | 20 | 1.86:1 | 90-416-A20 |
| 2001 | VZ175TLRZ | 20 | 1.86:1 | 90-416-A20 |
| 2001 | VZ200TLRZ | 20 | 1.86:1 | 90-416-A20 |
| 2000 | Z150TLRY | 20 | 1.86:1 | 90-416-A20 |
| 2000 | SX150TLRY | 20 | 1.86:1 | 90-416-A20 |
| 2000 | 150TLRY | 20 | 1.86:1 | 90-416-A20 |
| 2000 | V175TLRY | 20 | 1.86:1 | 90-416-A20 |
| 2000 | Z200TLRY | 20 | 1.86:1 | 90-416-A20 |
| 1999 | C150TLRX | 20 | 1.86:1 | 90-416-A20 |
| 1999 | S150TLRX | 20 | 1.86:1 | 90-416-A20 |
| 1999 | SX150TLRX | 20 | 1.86:1 | 90-416-A20 |
| 1999 | P175TLRX | 20 | 1.86:1 | 90-416-A20 |
| 1999 | P200TLRX | 20 | 1.86:1 | 90-416-A20 |
| 1998 | C150TLRW | 20 | 1.86:1 | 90-416-A20 |
| 1998 | 200TLRW | 20 | 1.86:1 | 90-416-A20 |
| 1998 | 150TLRW | 20 | 1.86:1 | 90-416-A20 |
| 1998 | S150TLRW | 20 | 1.86:1 | 90-416-A20 |
| 1998 | P175TLRW | 20 | 1.86:1 | 90-416-A20 |
| 1998 | P200TLRW | 20 | 1.86:1 | 90-416-A20 |
| 1997 | C150TLRV | 20 | 1.86:1 | 90-416-A20 |
| 1997 | 200TLRV | 20 | 1.86:1 | 90-416-A20 |
| 1997 | 150TLRV | 20 | 1.86:1 | 90-416-A20 |
| 1997 | S150TLRV | 20 | 1.86:1 | 90-416-A20 |
| 1997 | 175TLRV | 20 | 1.86:1 | 90-416-A20 |
| 1997 | P175TLRV | 20 | 1.86:1 | 90-416-A20 |
| 1997 | P200TLRV | 20 | 1.86:1 | 90-416-A20 |
| 1997 | 225TLRV | 20 | 1.86:1 | 90-416-A20 |
| 1996 | C150TLRU | 20 | 1.86:1 | 90-416-A20 |
| 1996 | S150TLRU | 20 | 1.86:1 | 90-416-A20 |
| 1996 | 150TLRU | 20 | 1.86:1 | 90-416-A20 |
| 1996 | 200TLRU | 20 | 1.86:1 | 90-416-A20 |
| 1996 | P175TLRU | 20 | 1.86:1 | 90-416-A20 |
| 1996 | P200TLRU | 20 | 1.86:1 | 90-416-A20 |
| 1996 | 225TLRU | 20 | 1.86:1 | 90-416-A20 |
| 1995 | 150TLRT | 20 | 1.86:1 | 90-416-A20 |
| 1995 | 175TLRT | 20 | 1.86:1 | 90-416-A20 |
| 1995 | 200TLRT | 20 | 1.86:1 | 90-416-A20 |
| 1995 | P175TLRT | 20 | 1.86:1 | 90-416-A20 |
| 1995 | P200TLRT | 20 | 1.86:1 | 90-416-A20 |
| 1995 | 225TLRT | 20 | 1.86:1 | 90-416-A20 |
| 1994 | 150TLRS | 20 | 1.86:1 | 90-416-A20 |
| 1994 | 175TLRS | 20 | 1.86:1 | 90-416-A20 |
| 1994 | 200TLRS | 20 | 1.86:1 | 90-416-A20 |
| 1994 | P175TLRS | 20 | 1.86:1 | 90-416-A20 |
| 1994 | P200TLRS | 20 | 1.86:1 | 90-416-A20 |
| 1994 | 225TLRS | 20 | 1.86:1 | 90-416-A20 |
| 1993 | 150TLRR | 20 | 1.86:1 | 90-416-A20 |
| 1993 | 175TLRR | 20 | 1.86:1 | 90-416-A20 |
| 1993 | 200TLRR | 20 | 1.86:1 | 90-416-A20 |
| 1993 | 225TLRR | 20 | 1.86:1 | 90-416-A20 |
| 1993 | P200TLRR | 20 | 1.86:1 | 90-416-A20 |
| 1992 | 150TLRQ | 20 | 1.86:1 | 90-416-A20 |
| 1992 | 175TLRQ | 20 | 1.86:1 | 90-416-A20 |
| 1992 | 200TLRQ | 20 | 1.86:1 | 90-416-A20 |
| 1992 | 225TLRQ | 20 | 1.86:1 | 90-416-A20 |
| 1992 | P200TLRQ | 20 | 1.86:1 | 90-416-A20 |
| 1991 | 150TLRP | 20 | 1.86:1 | 90-416-A20 |
| 1991 | 200TLRP | 20 | 1.86:1 | 90-416-A20 |
| 1991 | 175TLRP | 20 | 1.86:1 | 90-416-A20 |
| 1991 | 225TLRP | 20 | 1.86:1 | 90-416-A20 |
| 1991 | P200TLRP | 20 | 1.86:1 | 90-416-A20 |
| 1990 | 150ETLD | 20 | 1.86:1 | 90-416-A20 |
| 1990 | 175ETLD | 20 | 1.86:1 | 90-416-A20 |
| 1990 | 200ETLD | 20 | 1.86:1 | 90-416-A20 |
| 1990 | 225ETLD | 20 | 1.86:1 | 90-416-A20 |
| 1989 | 150ETLF | 20 | 1.86:1 | 90-416-A20 |
| 1989 | 175ETLF | 20 | 1.86:1 | 90-416-A20 |
| 1989 | 200ETLF | 20 | 1.86:1 | 90-416-A20 |
| 1989 | V6 EXCEL LF | 20 | 1.86:1 | 90-416-A20 |
| 1988 | 150ETLG | 20 | 1.86:1 | 90-416-A20 |
| 1988 | 175ETLG | 20 | 1.86:1 | 90-416-A20 |
| 1988 | 200ETLG | 20 | 1.86:1 | 90-416-A20 |
| 1988 | V6 EXCEL LG | 20 | 1.86:1 | 90-416-A20 |
| 1987 | 150ETLH | 20 | 1.86:1 | 90-416-A20 |
| 1987 | 175ETLH | 20 | 1.86:1 | 90-416-A20 |
| 1987 | 200ETLH | 20 | 1.86:1 | 90-416-A20 |
| 1987 | V6 EXCEL LH | 20 | 1.86:1 | 90-416-A20 |
| 1986 | 150ETLJ | 20 | 1.86:1 | 90-416-A20 |
| 1986 | 175ETLJ | 20 | 1.86:1 | 90-416-A20 |
| 1986 | 200ETLJ | 20 | 1.86:1 | 90-416-A20 |
| 1986 | V6 SPECIALL | 20 | 1.86:1 | 90-416-A20 |
| 1985 | 150ETLK | 20 | 1.86:1 | 90-416-A20 |
| 1985 | 200ETLK | 20 | 1.86:1 | 90-416-A20 |
| 1985 | 175ETLK | 20 | 1.86:1 | 90-416-A20 |
| 1985 | V6 SPECIAL LK | 20 | 1.86:1 | 90-416-A20 |
| 1985 | V6SPECIALL | 20 | 1.86:1 | 90-416-A20 |
| 1984 | 150ETLN | 20 | 1.86:1 | 90-416-A20 |
| 1984 | 175ETLN | 20 | 1.86:1 | 90-416-A20 |
| 1984 | 200ETLN | 20 | 1.86:1 | 90-416-A20 |
Replaces gear case on most Yamaha 90 Degree V6 2.6 Liter 2-Stroke Engines.
| Year | Model Number | Shaft | Gear Ratio | SEI part number |
|---|---|---|---|---|
| 2012 | Z200TXR | 25 | 1.86:1 | 90-416-A25 |
| 2011 | Z200TXR | 25 | 1.86:1 | 90-416-A25 |
| 2010 | Z200TXR | 25 | 1.86:1 | 90-416-A25 |
| 2009 | 150TXR | 25 | 1.86:1 | 90-416-A25 |
| 2009 | Z200TXR | 25 | 1.86:1 | 90-416-A25 |
| 2008 | 150TXR | 25 | 1.86:1 | 90-416-A25 |
| 2008 | Z200TXR | 25 | 1.86:1 | 90-416-A25 |
| 2007 | 150TXR | 25 | 1.86:1 | 90-416-A25 |
| 2007 | Z200TXR | 25 | 1.86:1 | 90-416-A25 |
| 2006 | 150TXR | 25 | 1.86:1 | 90-416-A25 |
| 2006 | Z200TXR | 25 | 1.86:1 | 90-416-A25 |
| 2005 | 150TXRD | 25 | 1.86:1 | 90-416-A25 |
| 2005 | Z150TXRD | 25 | 1.86:1 | 90-416-A25 |
| 2005 | Z175TXRD | 25 | 1.86:1 | 90-416-A25 |
| 2005 | Z200TXRD | 25 | 1.86:1 | 90-416-A25 |
| 2005 | SX200TXRD | 25 | 1.86:1 | 90-416-A25 |
| 2004 | Z150TXRC | 25 | 1.86:1 | 90-416-A25 |
| 2004 | Z175TXRC | 25 | 1.86:1 | 90-416-A25 |
| 2004 | Z200TXRC | 25 | 1.86:1 | 90-416-A25 |
| 2004 | SX200TXRC | 25 | 1.86:1 | 90-416-A25 |
| 2004 | 150TXRC | 25 | 1.86:1 | 90-416-A25 |
| 2004 | SX150TXRC | 25 | 1.86:1 | 90-416-A25 |
| 2003 | SX150TXRB | 25 | 1.86:1 | 90-416-A25 |
| 2003 | SX200TXRB | 25 | 1.86:1 | 90-416-A25 |
| 2003 | Z150TXRB | 25 | 1.86:1 | 90-416-A25 |
| 2003 | Z175TXRB | 25 | 1.86:1 | 90-416-A25 |
| 2003 | Z200TXRB | 25 | 1.86:1 | 90-416-A25 |
| 2003 | 150TXRB | 25 | 1.86:1 | 90-416-A25 |
| 2002 | SX200TXRA | 25 | 1.86:1 | 90-416-A25 |
| 2002 | Z150TXRA | 25 | 1.86:1 | 90-416-A25 |
| 2002 | Z200TXRA | 25 | 1.86:1 | 90-416-A25 |
| 2002 | Z175TXRA | 25 | 1.86:1 | 90-416-A25 |
| 2002 | 150TXRA | 25 | 1.86:1 | 90-416-A25 |
| 2002 | SX150TXRA | 25 | 1.86:1 | 90-416-A25 |
| 2001 | Z150TXRZ | 25 | 1.86:1 | 90-416-A25 |
| 2001 | SX200TXRZ | 25 | 1.86:1 | 90-416-A25 |
| 2001 | Z175TXRZ | 25 | 1.86:1 | 90-416-A25 |
| 2001 | Z200TXRZ | 25 | 1.86:1 | 90-416-A25 |
| 2001 | 150TXRZ | 25 | 1.86:1 | 90-416-A25 |
| 2001 | SX150TXRZ | 25 | 1.86:1 | 90-416-A25 |
| 2000 | SX200TXRY | 25 | 1.86:1 | 90-416-A25 |
| 2000 | Z150TXRY | 25 | 1.86:1 | 90-416-A25 |
| 2000 | SX150TXRY | 25 | 1.86:1 | 90-416-A25 |
| 2000 | 150TXRY | 25 | 1.86:1 | 90-416-A25 |
| 2000 | 175TXRY | 25 | 1.86:1 | 90-416-A25 |
| 2000 | Z200TXRY | 25 | 1.86:1 | 90-416-A25 |
| 1999 | C150TXRX | 25 | 1.86:1 | 90-416-A25 |
| 1999 | S200TXRX | 25 | 1.86:1 | 90-416-A25 |
| 1999 | SX200TXRX | 25 | 1.86:1 | 90-416-A25 |
| 1999 | S150TXRX | 25 | 1.86:1 | 90-416-A25 |
| 1999 | S175TXRX | 25 | 1.86:1 | 90-416-A25 |
| 1999 | SX150TXRX | 25 | 1.86:1 | 90-416-A25 |
| 1998 | C150TXRW | 25 | 1.86:1 | 90-416-A25 |
| 1998 | S200TXRW | 25 | 1.86:1 | 90-416-A25 |
| 1998 | S150TXRW | 25 | 1.86:1 | 90-416-A25 |
| 1998 | S175TXRW | 25 | 1.86:1 | 90-416-A25 |
| 1997 | C150TXRV | 25 | 1.86:1 | 90-416-A25 |
| 1997 | S200TXRV | 25 | 1.86:1 | 90-416-A25 |
| 1997 | S150TXRV | 25 | 1.86:1 | 90-416-A25 |
| 1997 | S175TXRV | 25 | 1.86:1 | 90-416-A25 |
| 1996 | C150TXRU | 25 | 1.86:1 | 90-416-A25 |
| 1996 | S200TXRU | 25 | 1.86:1 | 90-416-A25 |
| 1996 | 200TXRU | 25 | 1.86:1 | 90-416-A25 |
| 1996 | S150TXRU | 25 | 1.86:1 | 90-416-A25 |
| 1996 | S175TXRU | 25 | 1.86:1 | 90-416-A25 |
| 1995 | 150TXRT | 25 | 1.86:1 | 90-416-A25 |
| 1995 | 175TXRT | 25 | 1.86:1 | 90-416-A25 |
| 1995 | 200TXRT | 25 | 1.86:1 | 90-416-A25 |
| 1994 | 150TXRS | 25 | 1.86:1 | 90-416-A25 |
| 1994 | 175TXRS | 25 | 1.86:1 | 90-416-A25 |
| 1994 | 200TXRS | 25 | 1.86:1 | 90-416-A25 |
| 1993 | 150TXRR | 25 | 1.86:1 | 90-416-A25 |
| 1993 | 175TXRR | 25 | 1.86:1 | 90-416-A25 |
| 1993 | 200TXRR | 25 | 1.86:1 | 90-416-A25 |
| 1993 | 225TXRR | 25 | 1.86:1 | 90-416-A25 |
| 1992 | 150TXRQ | 25 | 1.86:1 | 90-416-A25 |
| 1992 | 175TXRQ | 25 | 1.86:1 | 90-416-A25 |
| 1992 | 200TXRQ | 25 | 1.86:1 | 90-416-A25 |
| 1992 | 225TXRQ | 25 | 1.86:1 | 90-416-A25 |
| 1991 | 175TXRP | 25 | 1.86:1 | 90-416-A25 |
| 1991 | 150TXRP | 25 | 1.86:1 | 90-416-A25 |
| 1991 | 200TXRP | 25 | 1.86:1 | 90-416-A25 |
| 1991 | 225TXRP | 25 | 1.86:1 | 90-416-A25 |
| 1990 | 150ETXD | 25 | 1.86:1 | 90-416-A25 |
| 1990 | 175ETXD | 25 | 1.86:1 | 90-416-A25 |
| 1990 | 200ETXD | 25 | 1.86:1 | 90-416-A25 |
| 1990 | 225ETXD | 25 | 1.86:1 | 90-416-A25 |
| 1989 | 150ETXF | 25 | 1.86:1 | 90-416-A25 |
| 1989 | 175ETXF | 25 | 1.86:1 | 90-416-A25 |
| 1989 | 200ETXF | 25 | 1.86:1 | 90-416-A25 |
| 1989 | V6 EXCEL XF | 25 | 1.86:1 | 90-416-A25 |
| 1988 | 150ETXG | 25 | 1.86:1 | 90-416-A25 |
| 1988 | 200ETXG | 25 | 1.86:1 | 90-416-A25 |
| 1988 | 175ETXG | 25 | 1.86:1 | 90-416-A25 |
| 1988 | V6 EXCEL XG | 25 | 1.86:1 | 90-416-A25 |
| 1987 | 150ETXH | 25 | 1.86:1 | 90-416-A25 |
| 1987 | 175ETXH | 25 | 1.86:1 | 90-416-A25 |
| 1987 | 200ETXH | 25 | 1.86:1 | 90-416-A25 |
| 1987 | V6 EXCEL XH | 25 | 1.86:1 | 90-416-A25 |
| 1986 | 150ETXJ | 25 | 1.86:1 | 90-416-A25 |
| 1986 | 175ETXJ | 25 | 1.86:1 | 90-416-A25 |
| 1986 | 200ETXJ | 25 | 1.86:1 | 90-416-A25 |
| 1986 | V6 SPECIALX | 25 | 1.86:1 | 90-416-A25 |
| 1985 | 150ETXK | 25 | 1.86:1 | 90-416-A25 |
| 1985 | 175ETXK | 25 | 1.86:1 | 90-416-A25 |
| 1985 | 200ETXK | 25 | 1.86:1 | 90-416-A25 |
| 1985 | V6 SPECIAL XK | 25 | 1.86:1 | 90-416-A25 |
| 1985 | V6SPECIALX | 25 | 1.86:1 | 90-416-A25 |
| 1984 | 150ETXN | 25 | 1.86:1 | 90-416-A25 |
| 1984 | 175ETXN | 25 | 1.86:1 | 90-416-A25 |
| 1984 | 200ETXN | 25 | 1.86:1 | 90-416-A25 |
Replaces most Yamaha 90 Degree V6 2.6 Liter 2-Stroke engines
Replaces OE #’s 64K-45300-04-NA, 64K-45300-02-NA, 64K-45300-01-NA, 64K-45300-03-NA
| Year | Model Number | Shaft | Gear Ratio | SEI part number |
|---|---|---|---|---|
| 2014 | VZ150TLR | 20 | 2:1 | 90-416-B20 |
| 2013 | VZ150TLR | 20 | 2:1 | 90-416-B20 |
| 2012 | VZ150TLR | 20 | 2:1 | 90-416-B20 |
| 2011 | VZ150TLR | 20 | 2:1 | 90-416-B20 |
| 2010 | VZ150TLR | 20 | 2:1 | 90-416-B20 |
| 2009 | VZ150TLR | 20 | 2:1 | 90-416-B20 |
| 2008 | VZ150TLR | 20 | 2:1 | 90-416-B20 |
| 2008 | V150TLR | 20 | 2:1 | 90-416-B20 |
| 2007 | VZ150TLR | 20 | 2:1 | 90-416-B20 |
| 2007 | V150TLR | 20 | 2:1 | 90-416-B20 |
| 2006 | VZ150TLR | 20 | 2:1 | 90-416-B20 |
| 2006 | V150TLR | 20 | 2:1 | 90-416-B20 |
| 2005 | V150TLRD | 20 | 2:1 | 90-416-B20 |
| 2005 | VZ150TLRD | 20 | 2:1 | 90-416-B20 |
| 2004 | V150TLRC | 20 | 2:1 | 90-416-B20 |
| 2004 | VX150TLRC | 20 | 2:1 | 90-416-B20 |
| 2004 | VZ150TLRC | 20 | 2:1 | 90-416-B20 |
| 2003 | V150TLRB | 20 | 2:1 | 90-416-B20 |
| 2003 | VX150TLRB | 20 | 2:1 | 90-416-B20 |
| 2003 | VZ150TLRB | 20 | 2:1 | 90-416-B20 |
| 2002 | V150TLRA | 20 | 2:1 | 90-416-B20 |
| 2002 | VZ150TLRA | 20 | 2:1 | 90-416-B20 |
| 2002 | VX150TLRA | 20 | 2:1 | 90-416-B20 |
| 2001 | VX150TLRZ | 20 | 2:1 | 90-416-B20 |
| 2001 | VZ150TLRZ | 20 | 2:1 | 90-416-B20 |
| 2001 | V150TLRZ | 20 | 2:1 | 90-416-B20 |
| 2000 | V150TLRY | 20 | 2:1 | 90-416-B20 |
| 2000 | VX150TLRY | 20 | 2:1 | 90-416-B20 |
| 2000 | VZ150TLRY | 20 | 2:1 | 90-416-B20 |
| 1999 | P150TLRX | 20 | 2:1 | 90-416-B20 |
| 1999 | PX150TLRX | 20 | 2:1 | 90-416-B20 |
| 1998 | P150TLRW | 20 | 2:1 | 90-416-B20 |
| 1997 | P150TLRV | 20 | 2:1 | 90-416-B20 |
| 1996 | P150TLRU | 20 | 2:1 | 90-416-B20 |
| 1995 | P150TLRT | 20 | 2:1 | 90-416-B20 |
| 1994 | P150TLRS | 20 | 2:1 | 90-416-B20 |
| 1993 | P150TLRR | 20 | 2:1 | 90-416-B20 |
| 1992 | P150TLRQ | 20 | 2:1 | 90-416-B20 |
| 1991 | P150TLRP | 20 | 2:1 | 90-416-B20 |
| 1990 | PROV150LD | 20 | 2:1 | 90-416-B20 |
| 1989 | PROV150LF | 20 | 2:1 | 90-416-B20 |
| 1988 | PROV150LG | 20 | 2:1 | 90-416-B20 |
| 1987 | PROV150LH | 20 | 2:1 | 90-416-B20 |
| 1986 | PROV150LJ | 20 | 2:1 | 90-416-B20 |
Replaces most Yamaha 4-Stroke 150HP engines with a 20″ drive shaft.
| Year | Model Number | Shaft | Gear Ratio | SEI part number |
|---|---|---|---|---|
| 2024 | F150LB | 20 | 2:1 | 90-416-B20F |
| 2024 | F150LB2 | 20 | 2:1 | 90-416-B20F |
| 2024 | F150LSA2 | 20 | 2:1 | 90-416-B20F |
| 2024 | F150LSA | 20 | 2:1 | 90-416-B20F |
| 2024 | F150LCB | 20 | 2:1 | 90-416-B20F |
| 2024 | F150LC | 20 | 2:1 | 90-416-B20F |
| 2024 | F150LC2 | 20 | 2:1 | 90-416-B20F |
| 2024 | F150LCA2 | 20 | 2:1 | 90-416-B20F |
| 2024 | F150LCA | 20 | 2:1 | 90-416-B20F |
| 2024 | VF150LB | 20 | 2:1 | 90-416-B20F |
| 2024 | VF150LA | 20 | 2:1 | 90-416-B20F |
| 2023 | F150LB | 20 | 2:1 | 90-416-B20F |
| 2023 | F150LB2 | 20 | 2:1 | 90-416-B20F |
| 2023 | F150LCA | 20 | 2:1 | 90-416-B20F |
| 2023 | F150LCA2 | 20 | 2:1 | 90-416-B20F |
| 2023 | VF150LA | 20 | 2:1 | 90-416-B20F |
| 2022 | F150LB2 | 20 | 2:1 | 90-416-B20F |
| 2022 | F150LB | 20 | 2:1 | 90-416-B20F |
| 2022 | F150LCA2 | 20 | 2:1 | 90-416-B20F |
| 2022 | F150LCA | 20 | 2:1 | 90-416-B20F |
| 2022 | VF150LA | 20 | 2:1 | 90-416-B20F |
| 2021 | F150LB | 20 | 2:1 | 90-416-B20F |
| 2021 | F150LB2 | 20 | 2:1 | 90-416-B20F |
| 2021 | F150LCA2 | 20 | 2:1 | 90-416-B20F |
| 2021 | F150LCA | 20 | 2:1 | 90-416-B20F |
| 2021 | VF150LA | 20 | 2:1 | 90-416-B20F |
| 2020 | F150LB | 20 | 2:1 | 90-416-B20F |
| 2020 | F150LCA | 20 | 2:1 | 90-416-B20F |
| 2020 | VF150LA | 20 | 2:1 | 90-416-B20F |
| 2019 | VF150LA | 20 | 2:1 | 90-416-B20F |
| 2019 | F150LB | 20 | 2:1 | 90-416-B20F |
| 2019 | F150LCA | 20 | 2:1 | 90-416-B20F |
| 2018 | VF150LA | 20 | 2:1 | 90-416-B20F |
| 2018 | F150LB | 20 | 2:1 | 90-416-B20F |
| 2018 | F150LCA | 20 | 2:1 | 90-416-B20F |
| 2017 | F150LCA | 20 | 2:1 | 90-416-B20F |
| 2017 | VF150LA | 20 | 2:1 | 90-416-B20F |
| 2017 | F150LB | 20 | 2:1 | 90-416-B20F |
| 2016 | VF150LA | 20 | 2:1 | 90-416-B20F |
| 2016 | F150LB | 20 | 2:1 | 90-416-B20F |
| 2015 | VF150LA | 20 | 2:1 | 90-416-B20F |
| 2015 | F150LB | 20 | 2:1 | 90-416-B20F |
| 2014 | VF150LA | 20 | 2:1 | 90-416-B20F |
| 2014 | F150LA | 20 | 2:1 | 90-416-B20F |
| 2013 | VF150LA | 20 | 2:1 | 90-416-B20F |
| 2013 | F150LA | 20 | 2:1 | 90-416-B20F |
| 2012 | F150LA | 20 | 2:1 | 90-416-B20F |
| 2011 | F150TLR | 20 | 2:1 | 90-416-B20F |
| 2010 | F150TLR | 20 | 2:1 | 90-416-B20F |
| 2009 | F150TLR | 20 | 2:1 | 90-416-B20F |
| 2008 | F150TLR | 20 | 2:1 | 90-416-B20F |
| 2007 | F150TLR | 20 | 2:1 | 90-416-B20F |
| 2006 | F150TLR | 20 | 2:1 | 90-416-B20F |
| 2005 | F150TLRD | 20 | 2:1 | 90-416-B20F |
| 2004 | F150TLRC | 20 | 2:1 | 90-416-B20F |
| Year | Model Number | Shaft | Gear Ratio | SEI part number |
|---|---|---|---|---|
| 2024 | F150XCA | 25 | 2:1 | 90-416-B25FS |
| 2024 | F150XCA2 | 25 | 2:1 | 90-416-B25FS |
| 2024 | F150XSA4 | 25 | 2:1 | 90-416-B25FS |
| 2024 | VF150XB | 25 | 2:1 | 90-416-B25FS |
| 2024 | VF150XA | 25 | 2:1 | 90-416-B25FS |
| 2023 | F150XSA4 | 25 | 2:1 | 90-416-B25FS |
| 2023 | F150XCA2 | 25 | 2:1 | 90-416-B25FS |
| 2023 | F150XCA | 25 | 2:1 | 90-416-B25FS |
| 2023 | VF150XA | 25 | 2:1 | 90-416-B25FS |
| 2022 | F150XCA2 | 25 | 2:1 | 90-416-B25FS |
| 2022 | F150XCA | 25 | 2:1 | 90-416-B25FS |
| 2022 | VF150XA | 25 | 2:1 | 90-416-B25FS |
| 2021 | F150XCA2 | 25 | 2:1 | 90-416-B25FS |
| 2021 | F150XCA | 25 | 2:1 | 90-416-B25FS |
| 2021 | VF150XA | 25 | 2:1 | 90-416-B25FS |
| 2020 | F150XCA | 25 | 2:1 | 90-416-B25FS |
| 2020 | VF150XA | 25 | 2:1 | 90-416-B25FS |
| 2019 | VF150XA | 25 | 2:1 | 90-416-B25FS |
| 2019 | F150XCA | 25 | 2:1 | 90-416-B25FS |
| 2018 | VF150XA | 25 | 2:1 | 90-416-B25FS |
| 2018 | F150XCA | 25 | 2:1 | 90-416-B25FS |
| 2017 | F150XCA | 25 | 2:1 | 90-416-B25FS |
| 2017 | VF150XA | 25 | 2:1 | 90-416-B25FS |
| 2016 | VF150XA | 25 | 2:1 | 90-416-B25FS |
| 2015 | VF150XA | 25 | 2:1 | 90-416-B25FS |
Replaces most Yamaha 4-Stroke 150HP engines with 25″ drive shaft.
| Year | Model Number | Shaft | Gear Ratio | SEI part number |
|---|---|---|---|---|
| 2024 | F150XB2 | 25 | 2:1 | 90-416-B25F |
| 2024 | F150XC | 25 | 2:1 | 90-416-B25F |
| 2023 | F150XB | 25 | 2:1 | 90-416-B25F |
| 2023 | F150XB2 | 25 | 2:1 | 90-416-B25F |
| 2022 | F150XB2 | 25 | 2:1 | 90-416-B25F |
| 2022 | F150XB | 25 | 2:1 | 90-416-B25F |
| 2021 | F150XB | 25 | 2:1 | 90-416-B25F |
| 2021 | F150XB2 | 25 | 2:1 | 90-416-B25F |
| 2020 | F150XB | 25 | 2:1 | 90-416-B25F |
| 2019 | F150XB | 25 | 2:1 | 90-416-B25F |
| 2018 | F150XB | 25 | 2:1 | 90-416-B25F |
| 2017 | F150XB | 25 | 2:1 | 90-416-B25F |
| 2016 | F150XB | 25 | 2:1 | 90-416-B25F |
| 2015 | F150XB | 25 | 2:1 | 90-416-B25F |
| 2014 | F150XA | 25 | 2:1 | 90-416-B25F |
| 2013 | F150XA | 25 | 2:1 | 90-416-B25F |
| 2012 | F150XA | 25 | 2:1 | 90-416-B25F |
| 2011 | F150TXR | 25 | 2:1 | 90-416-B25F |
| 2010 | F150TXR | 25 | 2:1 | 90-416-B25F |
| 2009 | F150TXR | 25 | 2:1 | 90-416-B25F |
| 2008 | F150TXR | 25 | 2:1 | 90-416-B25F |
| 2007 | F150TXR | 25 | 2:1 | 90-416-B25F |
| 2006 | F150TXR | 25 | 2:1 | 90-416-B25F |
| 2005 | F150TXRD | 25 | 2:1 | 90-416-B25F |
| 2004 | F150TXRC | 25 | 2:1 | 90-416-B25F |
| 2024 | F150XB | 25 | 2:1 | 90-416-B25F |
| 2024 | F150XCB | 25 | 2:1 | 90-416-B25F |
| 2024 | F150XC2 | 25 | 2:1 | 90-416-B25F |
| 2024 | F150XSA | 25 | 2:1 | 90-416-B25F |
| 2024 | F150XSA2 | 25 | 2:1 | 90-416-B25F |
Fits inline 4 cylinder F175 & F200 Yamaha Outboards with a 20″ Shaft.
| Year | Model Number | Shaft | Gear Ratio | SEI part number |
|---|---|---|---|---|
| 2024 | F175LA | 20 | 1.86:1 | 90-416-A20F |
| 2024 | F175LA2 | 20 | 1.86:1 | 90-416-A20F |
| 2024 | F175LCA2 | 20 | 1.86:1 | 90-416-A20F |
| 2024 | F175LCA | 20 | 1.86:1 | 90-416-A20F |
| 2024 | VF175LB | 20 | 1.86:1 | 90-416-A20F |
| 2024 | VF175LA | 20 | 1.86:1 | 90-416-A20F |
| 2024 | F200LB2 | 20 | 1.86:1 | 90-416-A20F |
| 2024 | F200LB | 20 | 1.86:1 | 90-416-A20F |
| 2024 | F200LCB | 20 | 1.86:1 | 90-416-A20F |
| 2024 | F200LCA2 | 20 | 1.86:1 | 90-416-A20F |
| 2024 | F200LCA | 20 | 1.86:1 | 90-416-A20F |
| 2024 | F200LC | 20 | 1.86:1 | 90-416-A20F |
| 2024 | F200LC2 | 20 | 1.86:1 | 90-416-A20F |
| 2023 | F175LA2 | 20 | 1.86:1 | 90-416-A20F |
| 2023 | F175LA | 20 | 1.86:1 | 90-416-A20F |
| 2023 | F175LCA2 | 20 | 1.86:1 | 90-416-A20F |
| 2023 | F175LCA | 20 | 1.86:1 | 90-416-A20F |
| 2023 | VF175LA | 20 | 1.86:1 | 90-416-A20F |
| 2023 | F200LB2 | 20 | 1.86:1 | 90-416-A20F |
| 2023 | F200LB | 20 | 1.86:1 | 90-416-A20F |
| 2023 | F200LCA2 | 20 | 1.86:1 | 90-416-A20F |
| 2023 | F200LCA | 20 | 1.86:1 | 90-416-A20F |
| 2022 | F175LA | 20 | 1.86:1 | 90-416-A20F |
| 2022 | F175LA2 | 20 | 1.86:1 | 90-416-A20F |
| 2022 | F175LCA | 20 | 1.86:1 | 90-416-A20F |
| 2022 | F175LCA2 | 20 | 1.86:1 | 90-416-A20F |
| 2022 | VF175LA | 20 | 1.86:1 | 90-416-A20F |
| 2022 | F200LB | 20 | 1.86:1 | 90-416-A20F |
| 2022 | F200LB2 | 20 | 1.86:1 | 90-416-A20F |
| 2022 | F200LCA | 20 | 1.86:1 | 90-416-A20F |
| 2022 | F200LCA2 | 20 | 1.86:1 | 90-416-A20F |
| 2021 | F175LA | 20 | 1.86:1 | 90-416-A20F |
| 2021 | F175LA2 | 20 | 1.86:1 | 90-416-A20F |
| 2021 | VF175LA | 20 | 1.86:1 | 90-416-A20F |
| 2021 | F175LCA2 | 20 | 1.86:1 | 90-416-A20F |
| 2021 | F175LCA | 20 | 1.86:1 | 90-416-A20F |
| 2021 | F200LB2 | 20 | 1.86:1 | 90-416-A20F |
| 2021 | F200LB | 20 | 1.86:1 | 90-416-A20F |
| 2021 | F200LCA2 | 20 | 1.86:1 | 90-416-A20F |
| 2021 | F200LCA | 20 | 1.86:1 | 90-416-A20F |
| 2020 | F175LA | 20 | 1.86:1 | 90-416-A20F |
| 2020 | VF175LA | 20 | 1.86:1 | 90-416-A20F |
| 2020 | F175LCA | 20 | 1.86:1 | 90-416-A20F |
| 2020 | F200LB | 20 | 1.86:1 | 90-416-A20F |
| 2020 | F200LCA | 20 | 1.86:1 | 90-416-A20F |
| 2019 | F175LA | 20 | 1.86:1 | 90-416-A20F |
| 2019 | VF175LA | 20 | 1.86:1 | 90-416-A20F |
| 2019 | F175LCA | 20 | 1.86:1 | 90-416-A20F |
| 2019 | F200LB | 20 | 1.86:1 | 90-416-A20F |
| 2019 | F200LCA | 20 | 1.86:1 | 90-416-A20F |
| 2018 | F175LCA | 20 | 1.86:1 | 90-416-A20F |
| 2018 | VF175LA | 20 | 1.86:1 | 90-416-A20F |
| 2018 | F175LA | 20 | 1.86:1 | 90-416-A20F |
| 2018 | F200LCA | 20 | 1.86:1 | 90-416-A20F |
| 2018 | F200LB | 20 | 1.86:1 | 90-416-A20F |
| 2017 | F175LCA | 20 | 1.86:1 | 90-416-A20F |
| 2017 | VF175LA | 20 | 1.86:1 | 90-416-A20F |
| 2017 | F175LA | 20 | 1.86:1 | 90-416-A20F |
| 2017 | F200LCA | 20 | 1.86:1 | 90-416-A20F |
| 2017 | F200LB | 20 | 1.86:1 | 90-416-A20F |
| 2016 | VF175LA | 20 | 1.86:1 | 90-416-A20F |
| 2016 | F175LA | 20 | 1.86:1 | 90-416-A20F |
| 2016 | F200LB | 20 | 1.86:1 | 90-416-A20F |
| 2015 | VF175LA | 20 | 1.86:1 | 90-416-A20F |
| 2015 | F175LA | 20 | 1.86:1 | 90-416-A20F |
| 2015 | F200LB | 20 | 1.86:1 | 90-416-A20F |
| 2014 | F175LA | 20 | 1.86:1 | 90-416-A20F |
| 2014 | F200LB | 20 | 1.86:1 | 90-416-A20F |
| 2013 | F200LB | 20 | 1.86:1 | 90-416-A20F |
| 2012 | F200LB | 20 | 1.86:1 | 90-416-A20F |
Fits inline 4 cylinder F175 & F200 Yamaha Outboards with a 25″ Shaft
| Year | Model Number | Shaft | Gear Ratio | SEI part number |
|---|---|---|---|---|
| 2024 | F175XB | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F175XA | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F175XA2 | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F175XCA | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F175XCB | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F175XSA2 | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F175XSA | 25 | 1.86:1 | 90-416-A25F |
| 2024 | VF175XB | 25 | 1.86:1 | 90-416-A25F |
| 2024 | VF175XA | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F200XB | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F200XB2 | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F200XCB | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F200XSA | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F200XSA2 | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F200XSA4 | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F200XCA2 | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F200XCA | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F200XC | 25 | 1.86:1 | 90-416-A25F |
| 2024 | F200XC2 | 25 | 1.86:1 | 90-416-A25F |
| 2023 | F175XA2 | 25 | 1.86:1 | 90-416-A25F |
| 2023 | F175XCA2 | 25 | 1.86:1 | 90-416-A25F |
| 2023 | F175XCA | 25 | 1.86:1 | 90-416-A25F |
| 2023 | VF175XA | 25 | 1.86:1 | 90-416-A25F |
| 2023 | F200XB2 | 25 | 1.86:1 | 90-416-A25F |
| 2023 | F200XB | 25 | 1.86:1 | 90-416-A25F |
| 2023 | F200XSA4 | 25 | 1.86:1 | 90-416-A25F |
| 2023 | F200XCA2 | 25 | 1.86:1 | 90-416-A25F |
| 2023 | F200XCA | 25 | 1.86:1 | 90-416-A25F |
| 2022 | F175XA | 25 | 1.86:1 | 90-416-A25F |
| 2022 | F175XA2 | 25 | 1.86:1 | 90-416-A25F |
| 2022 | F175XCA | 25 | 1.86:1 | 90-416-A25F |
| 2022 | F175XCA2 | 25 | 1.86:1 | 90-416-A25F |
| 2022 | VF175XA | 25 | 1.86:1 | 90-416-A25F |
| 2022 | F200XB | 25 | 1.86:1 | 90-416-A25F |
| 2022 | F200XB2 | 25 | 1.86:1 | 90-416-A25F |
| 2022 | F200XCA | 25 | 1.86:1 | 90-416-A25F |
| 2022 | F200XCA2 | 25 | 1.86:1 | 90-416-A25F |
| 2021 | F175XA | 25 | 1.86:1 | 90-416-A25F |
| 2021 | F175XA2 | 25 | 1.86:1 | 90-416-A25F |
| 2021 | VF175XA | 25 | 1.86:1 | 90-416-A25F |
| 2021 | F175XCA2 | 25 | 1.86:1 | 90-416-A25F |
| 2021 | F175XCA | 25 | 1.86:1 | 90-416-A25F |
| 2021 | F200XB2 | 25 | 1.86:1 | 90-416-A25F |
| 2021 | F200XB | 25 | 1.86:1 | 90-416-A25F |
| 2021 | F200XCA2 | 25 | 1.86:1 | 90-416-A25F |
| 2021 | F200XCA | 25 | 1.86:1 | 90-416-A25F |
| 2020 | F175XA | 25 | 1.86:1 | 90-416-A25F |
| 2020 | VF175XA | 25 | 1.86:1 | 90-416-A25F |
| 2020 | F175XCA | 25 | 1.86:1 | 90-416-A25F |
| 2020 | F200XB | 25 | 1.86:1 | 90-416-A25F |
| 2020 | F200XCA | 25 | 1.86:1 | 90-416-A25F |
| 2019 | F175XA | 25 | 1.86:1 | 90-416-A25F |
| 2019 | VF175XA | 25 | 1.86:1 | 90-416-A25F |
| 2019 | F175XCA | 25 | 1.86:1 | 90-416-A25F |
| 2019 | F200XB | 25 | 1.86:1 | 90-416-A25F |
| 2019 | F200XCA | 25 | 1.86:1 | 90-416-A25F |
| 2018 | F175XCA | 25 | 1.86:1 | 90-416-A25F |
| 2018 | VF175XA | 25 | 1.86:1 | 90-416-A25F |
| 2018 | F175XA | 25 | 1.86:1 | 90-416-A25F |
| 2018 | F200XCA | 25 | 1.86:1 | 90-416-A25F |
| 2018 | F200XB | 25 | 1.86:1 | 90-416-A25F |
| 2017 | F175XCA | 25 | 1.86:1 | 90-416-A25F |
| 2017 | VF175XA | 25 | 1.86:1 | 90-416-A25F |
| 2017 | F175XA | 25 | 1.86:1 | 90-416-A25F |
| 2017 | F200XCA | 25 | 1.86:1 | 90-416-A25F |
| 2017 | F200XB | 25 | 1.86:1 | 90-416-A25F |
| 2016 | F175XA | 25 | 1.86:1 | 90-416-A25F |
| 2016 | F200XCA | 25 | 1.86:1 | 90-416-A25F |
| 2016 | F200XB | 25 | 1.86:1 | 90-416-A25F |
| 2015 | F175XA | 25 | 1.86:1 | 90-416-A25F |
| 2015 | F200XCA | 25 | 1.86:1 | 90-416-A25F |
| 2015 | F200XB | 25 | 1.86:1 | 90-416-A25F |
| 2014 | F175XA | 25 | 1.86:1 | 90-416-A25F |
| 2014 | F200XCA | 25 | 1.86:1 | 90-416-A25F |
| 2014 | F200XB | 25 | 1.86:1 | 90-416-A25F |
| 2013 | F200XCA | 25 | 1.86:1 | 90-416-A25F |
| 2013 | F200XB | 25 | 1.86:1 | 90-416-A25F |
| 2012 | F200XB | 25 | 1.86:1 | 90-416-A25F |
| Weight | 65 lbs |
|---|---|
| Dimensions | 65 × 37 × 10 in |
| Ratio/Motor/Length |
2.6L / 1.86 Ratio/Two Stroke/20" Shaft/RH Rotation ,2.6L / 1.86 Ratio/Two Stroke/25" Shaft/RH Rotation ,2.6L / 2.00 Ratio/Two Stroke/20"/RH Rotation ,F150 / 2.00 Ratio/Four Stroke/20" Shaft/RH Rotation ,F150 / 2.00 Ratio/Four Stroke/25" Shaft Short Shift Shaft ,F150 / 2.00 Ratio/Four Stroke/25" Shaft/RH Rotation ,F200 4 Cyl. / 1.86 Ratio/Four Stroke/20" Shaft ,F200 4 Cyl. / 1.86 Ratio/Four Stroke/25" Shaft |
Only logged in customers who have purchased this product may leave a review.
We understand that getting your products quickly is important. Our partnership with FedEx guarantees:
We’ve made online shopping safe and simple by offering trusted payment options:
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
Out of stock
Out of stock
In stock
In stock
For further inquiries :
No account yet?
Create an AccountSending...
Kaitlin Jones –
Installed solo in 25 minutes. No leaks, no fuss. 10/10!
Travis Johnson –
Eco-design—heavy-duty!
Connie Hampton –
Arrived undamaged, no missing pieces. Straightforward setup.
Wanda Brown MD –
The zinc-coated bolts haven’t rusted after months in brackish water. Installation was tool-free, and the unit outperforms my old OEM part. Silent, efficient, and built to last—highly recommend!
Jeremy Bowen –
After a disappointing Amazon purchase, this unit restored my faith. The gears are quiet, the shifts are crisp, and the customer service is stellar. A keeper!
Robert Bowen –
This unit’s seals are beefier than my old one. Installed it in 35 minutes, and it’s been leak-free for weeks. A reliable, no-nonsense upgrade!
Michelle Reed MD –
This unit’s bulletproof seals banished leaks. Installed in 35 minutes, dry for months. No-nonsense reliability for serious boaters!
Amanda Jensen –
All hardware included. Saved me a trip to the store!
Kimberly Hays –
The anti-corrosion coating is thicker than on my old unit. After saltwater exposure, it still looks pristine. Shifts are silent, and the price is fair. 10/10!
Anthony Cook –
Tested this in icy lakes and tropical waters—no issues. The stainless steel gears handle temperature swings effortlessly, and the shifts stay precise. A four-season workhorse!
Emily Powers –
Personalized service—flawless results!
Morgan Wallace –
Fits like it was custom-made. Zero gaps or wobbles.
Nicole Alvarez –
The price had me skeptical, but this unit outperforms pricier brands. Shifts are crisp, the housing is rugged, and the splines fit perfectly. A steal for the quality!
George Davis –
Arrived with a thank-you note. Flawless performance—zero regrets!
