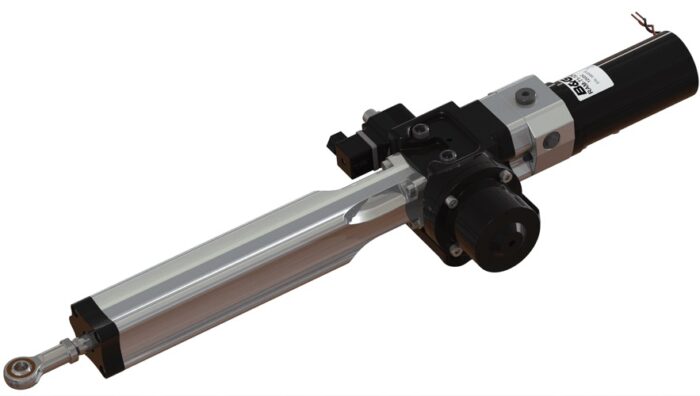

B&G Hydraulic Ram T2 12V Drive Unit

Name: B&amp;G Hydraulic Ram T2 12V Drive Unit
Brand: B &amp; G
SKU: WT-BNGRAMT212V
Availability: OutOfStock

Original price was: $2,884.89.Current price is: $2,599.00.

Out of stock

Add to compare

Add to wishlist

SKU: WT-BNGRAMT212V Category: Drives

The B&G Hydraulic Ram T2 12V Drive Unit RAM-T2-12V is a pre-filled, sealed unit for vessels with mechanical primary steering. This outboard lower unit features internal relief valves, bi-directional motor, and clutch solenoid coil for autopilot mode.

Description
Additional information

Description

B & G Hydraulic Ram T2 12V

Model: RAM-T2-12V

The RAM T2 Hydraulic linear actuator combines a cylinder, pump, motor, clutch and reservoir in a pre-filled, sealed unit. Designed to be used on vessels fitted with mechanical primary steering that can be back-driven. When the clutch is disengaged the cylinder is free and moves with the primary steering. To operate the unit in autopilot mode the course computer energizes the clutch solenoid coil and runs the bi-directional motor to extend and retract the ram. Internal relief valves protect the unit and its mountings from rudder strikes, grounding etc.

Specifications

Performance
Maximum thrust (intermittent)	700 kg
Hard over time nominal RAM-T2	9 sec
Temperature rating minimum	-20 c
Temperature rating maximum	+65 c
Relief valve setting	62 bar
Back-drive at 12 sec Hard-over	7kg
Electrical
Compatible computers	H5000 / NAC3
Motor voltage nominal	12v DC
Motor power	100 watt
Max current 12v 25% duty	22.5 A
Rotation	Reversing
Protection	IP44
Connection	1m 2 Core Flying Lead
Ignition protection	BS EN 28846:1993
Coil power continuous	12 watt
Recommended oil	Mineral based hydraulic ISO VG10
Materials
Body	Aluminium BS 1490
Piston rod	Chrome Plated Stainless Steel
Seals	Nitrile & PTFE
Body Protection	SP270
