Raymarine 55 Watt Cyclone Pedestal Only
Original price was: $6,410.24.$5,774.99Current price is: $5,774.99.
5 in stock
The Raymarine 55 Watt Cyclone Pedestal Only E70620 is a high-performance outboard lower unit designed for maximum range and accuracy. With a power consumption of 70 Watts and IPX6 waterproof rating, this pedestal is built to withstand harsh marine conditions.
Description

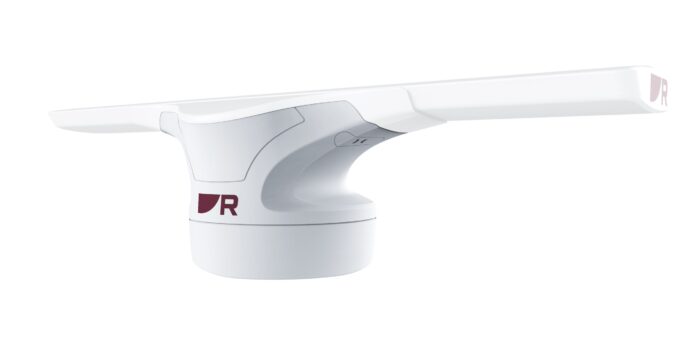

Raymarine 55 Watt Cyclone Pedestal Only
Model: E70620
Pedestal Only for 55 Watt Cyclone
Specifications
| Supply voltage (Using VCM100) | Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc |
| Power consumption (typical) | 70 Watts |
| Power consumption (max) | 170 Watts |
| Power consumption (standby) | 28 Watts |
| Maximum range scale | 72 nm |
| Boot up time | 40 seconds |
| Standby to transmit | less than 5 seconds |
| Waterproof rating | IPX6 |
| Operating temperature range | -25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum wind speed | 100 Kts |
| Power connection | 1x Power connector |
| Data connection | 1x RayNet connector |
| Transmitter frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Peak power output | 55 Watts |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB |
| Pedestal | |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight | 16 Kg |
What’s in the Box:
- E70620 55 watt pedestal
Additional information
| Weight | 39.6 lbs |
|---|---|
| Google Part Number |
E70620 |
| Google Product Category |
1552 |
