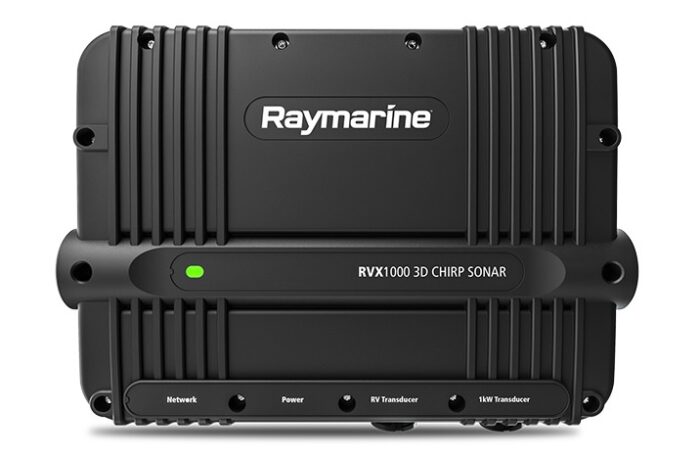

Raymarine RVX1000 3D CHIRP Sonar Module

Raymarine RVX1000 High Performance 3D CHIRP Sonar Module

Model: E70511

• RealVision 3D
• CHIRP SideVision
• CHIRP DownVision
• Low-power, high-frequency CHIRP
• 1kW high-powered CHIRP Sonar (Low, Medium, High CHIRP, 50/80/100/160/200kHz)

The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine’s award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.

Easily identify structure and locate fish with the life-like clarity of RealVision 3D sonar. Sonar Scroll Back – rewind, pause and playback up to 10 minutes recorded sonar history to take a closer look at fish and structure, and easily plot waypoints. TruZoom™ magnification reveals extra target detail without loss of resolution.

RealVision 3D™ sonar with GPS Track feature uses precision GPS to construct the most accurate 3D model of the underwater world, in real-time.

Powerful 3D sonar upgrade solution for Raymarine eS and gS Series line of multifunction displays.

The RVX1000’s dedicated quad core processor allows previous generation MFD’s to run multiple sonar channels simultaneously without any compromise in performance.

Specifications

What’s in the Box:

• RVX1000 Sonar Module
• Power Cable, 1.5M
• Fixing Screws, #8 (4)
• Documentation Pack (1)
• RayNet Network Cable, 2M (1)
