Xantrex 808-8040-10 Remote Panel F/TC3 Chargers

Name: Xantrex 808-8040-10 Remote Panel F/TC3 Chargers
Brand: Xantrex
SKU: WT-XAN808804010
Availability: InStock

Original price was: $149.57.Current price is: $134.75.

1 in stock

Add to compare

Add to wishlist

SKU: WT-XAN808804010 Category: Chargers

Xantrex 808-8040-10 Remote Panel F/TC3 Chargers allows you to monitor and control battery charging from a remote location, perfect for outboard lower unit applications. Adjust charger output, read battery bank statuses, and activate quiet mode with ease.

Description
Additional information

Description

Xantrex 808-8040-10 Remote Panel F/TC3 Chargers

Model: 808-8040-10

Parallel stack chargers
Adjust charger output
Read battery bank statuses
Activate quite mode
FCC Class B

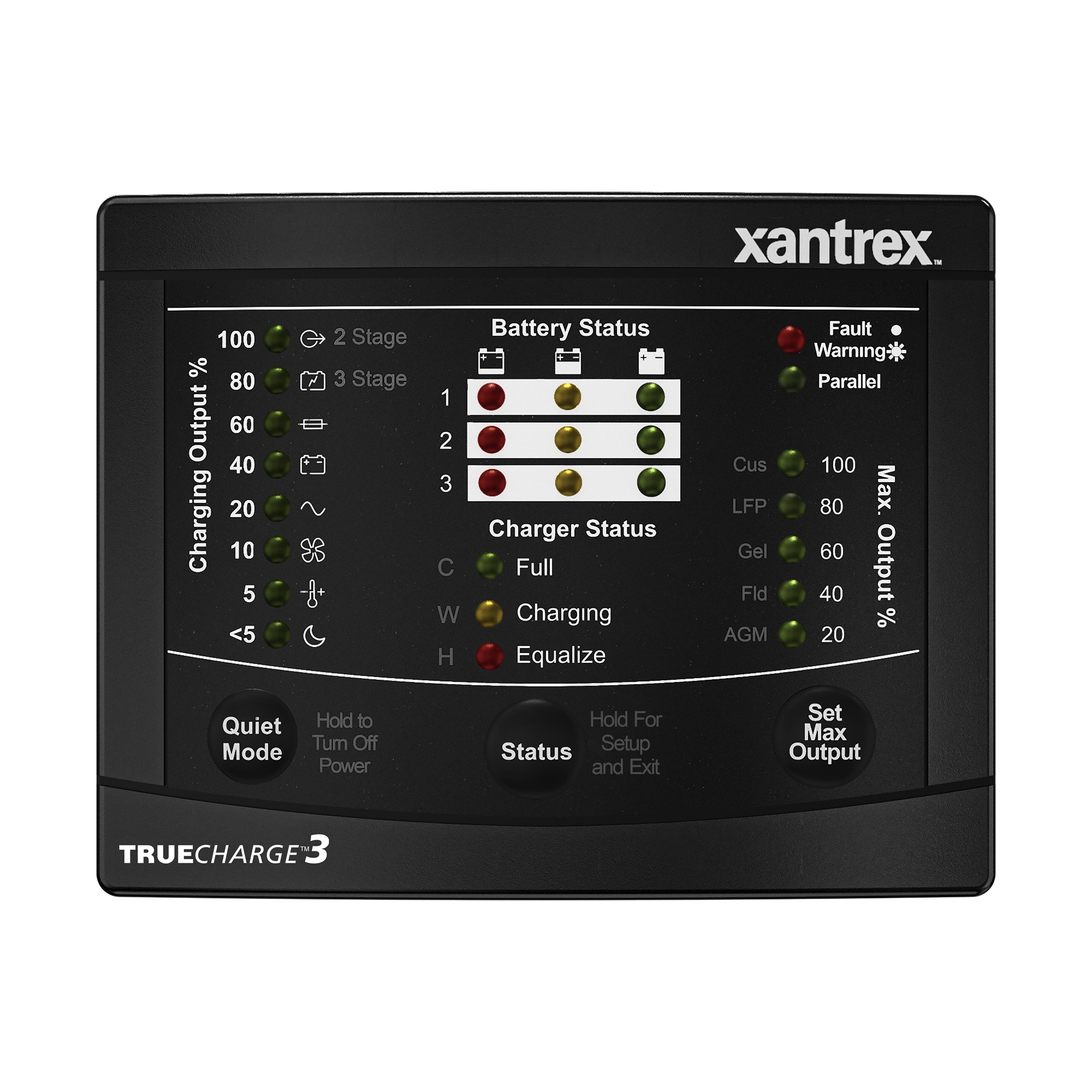

This full-function remote allows you to monitor and control battery charger performance from a remote location, including features not accessible from the charger’s onboard display. The Remote Panel reads like a fuel gauge and displays critical information on charging of battery banks. It is very easy to install, read and operate, connecting with the battery charger through the included telephone cable. The TRUECharge3 Remote Panel is designed for use with TRUECharge3 Battery Chargers.

Specifications

Electrical Specifications
Display	LED
Off-state battery drain	< 40 mA
On-state power consumption	< 150 mA
Mechanical Specifications
Dimensions (L x W x H)	4.56 x 1.75 x 3.5" (114.64 x 44.39 x 89.64 mm)
Weight	0.44 lb (200 g)
Environmental Specifications
Operating temperature range	32—140°F (0—60°C)
Storage temperature range	-40—176°F (-40—80°C)
