Icom M510 Plus AIS VHF

Name: Icom M510 Plus AIS VHF
SKU: WT-ICOM510PLUS21USA
Availability: OutOfStock

Original price was: $1,338.66.Current price is: $1,206.00.

Out of stock

Add to compare

Add to wishlist

SKU: WT-ICOM510PLUS21USA Category: Fixed Mount

“Icom M510 PLUS 21 USA AIS VHF Radio, a top-of-the-line fixed mount marine transceiver for your outboard lower unit, featuring integrated AIS, GPS, and NMEA 2000 connectivity for enhanced navigation and communication.”

Description
Additional information

Description

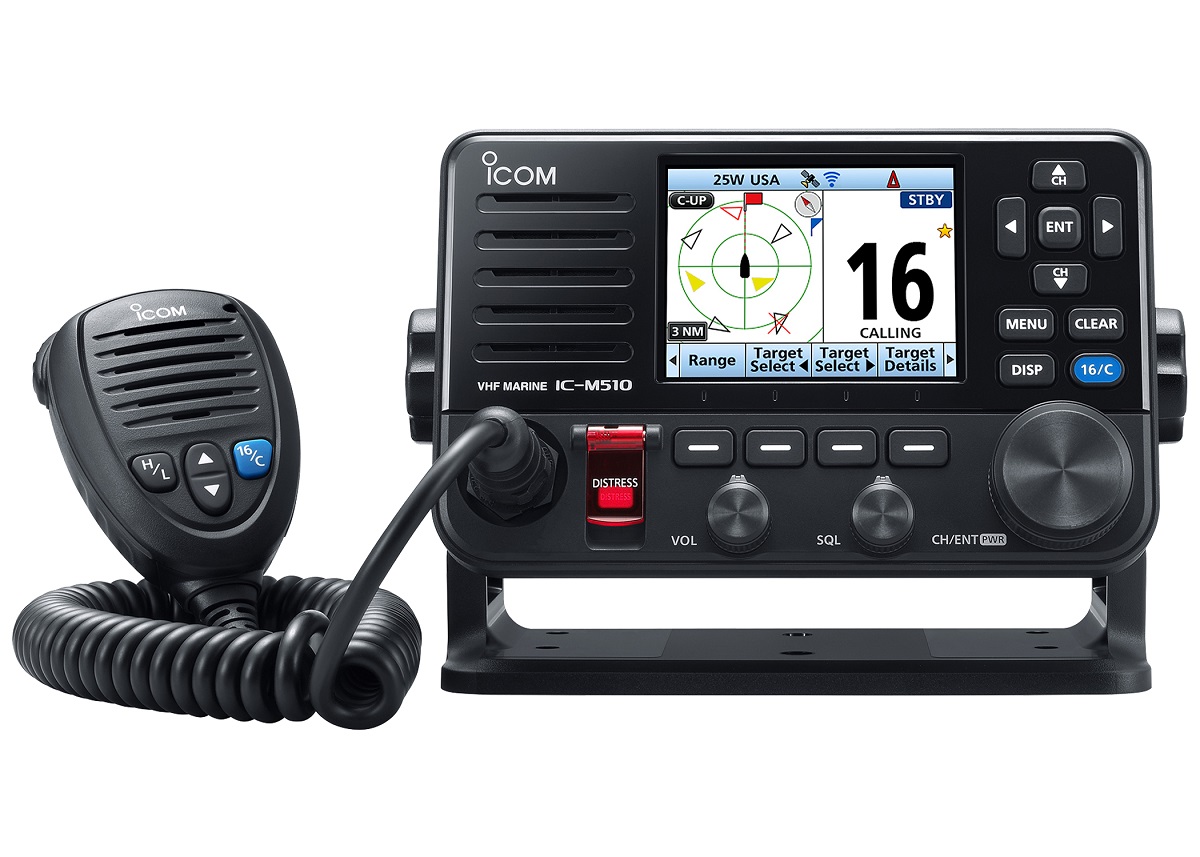

Icom M510 PLUS AIS VHF Radio

Model: M510 PLUS 21 USA

Active Noise Canceling
NMEA 0183/HS connectivity
Integrated GNSS receiver (Selectable from either internal receiver or use UX-241 GNSS antenna)
IP68 advanced waterproofing (1 m depth of water for 60 minutes)
Automatic Foghorn function (CT-M500 required)
Voice Scrambler with optional UT-112A
AquaQuake™ prevents audio degradation from a water-logged speaker
Supplied speaker-microphone, HM-205RB can be connected to the rear panel
External speaker connection
Controlled with COMMANDMIC™ HM-195GB/GW
Supports 4-digit channels

Icom’s new Class D DSC fixed mount VHF marine transceiver, the M510 is a tech-laden powerhouse. The M510 is nearly half the depth of the M506, allowing installation in more confined spaces. The large color display has a simple user interface allowing casual and serious boaters alike with plenty of options to communicate. Additionally, command and control using iOS® and Android™ smart devices with class leading features such as wireless calling.

The M510 includes a full color 3.5″ TFT LCD screen with a near 180-degree viewing angles. The standard marine user interface is enhanced with animated functions and night mode for optimal viewing in the dark.

The RS-M500 app allows you to connect three iOS® or Android™ smart devices to function as a wireless command speaker/microphone. Use the push-to-talk features, scroll/scan channels, as well as use the M510’s intercom function from the comfort of the captain’s seat. Additionally, one COMMANDMIC™ can connect while 3 other smart devices are linked.

Connect to NMEA 2000 with the optional CT-M500 wireless interface box. If the NMEA connection is on a different part of the boat, the CT-M500 can wirelessly connect with the M510, providing flexibility on placement. Additionally, with the optional SP-37 horn speaker, the CT-M500 can access the two-way hailer/PA functions.

With its integrated AIS receiver or external NMEA sentence (third party AIS receiver, transponder), the IC-M510 can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.

Specifications

General
Usable channels	USA, INT, CAN, WX channels
Type of emission	16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*
Power supply requirement	13.8V DC (11.7—15.9V DC)
Current drain TX (25W output)	5.0A
Current drain RX (Max. Audio)	3.3A
Operating temperature range	—20°C to +60°C; —4°F to +140°F
Antenna impedance	50 Ohm
Transmitter
Output power (at 13.8V DC)	25W, 1W
Max. frequency deviation	+/- 5.0 kHz
Frequency tolerance	+/- 0.5 kHz
Spurious emissions	Less than -70 dBc (at 25W)
Residual modulation	More than 40 dB
More than 40 dB	More than 70 dB
Receiver
Sensitivity (at 12dB SINAD) DSC (1% BER)	0.32 µV typical 0.89 µV emf typical
Adjacent channel selectivity DSC (1% BER)	More than 75 dB More than 73 dBµ emf
Spurious response DSC (1% BER)	More than 75 dB More than 73 dBµ emf
Intermodulation DSC (1% BER)	More than 75 dB More than 68 dBµ emf
Hum and noise	More than 40 dB
Audio output power at 10% distortion	More than 15W with a 4Ω external speaker
Wireless LAN
Wireless LAN standard	IEEE 802.11 b/g/n
Authentication and Encryption	WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES)
Channels	1 to 13 (2.4 GHz band)**
Output power	Less than 10 mW/MHz
