Fast delivery within 72 Hours

OceanLED Explore E3 XFM Dual Blue/White Light

Name: OceanLED Explore E3 XFM Dual Blue/White Light
Brand: Ocean LED
SKU: WT-OLEE3009BW
Availability: OutOfStock

Original price was: $2,414.25.Current price is: $2,175.00.

Out of stock

Add to compare

Add to wishlist

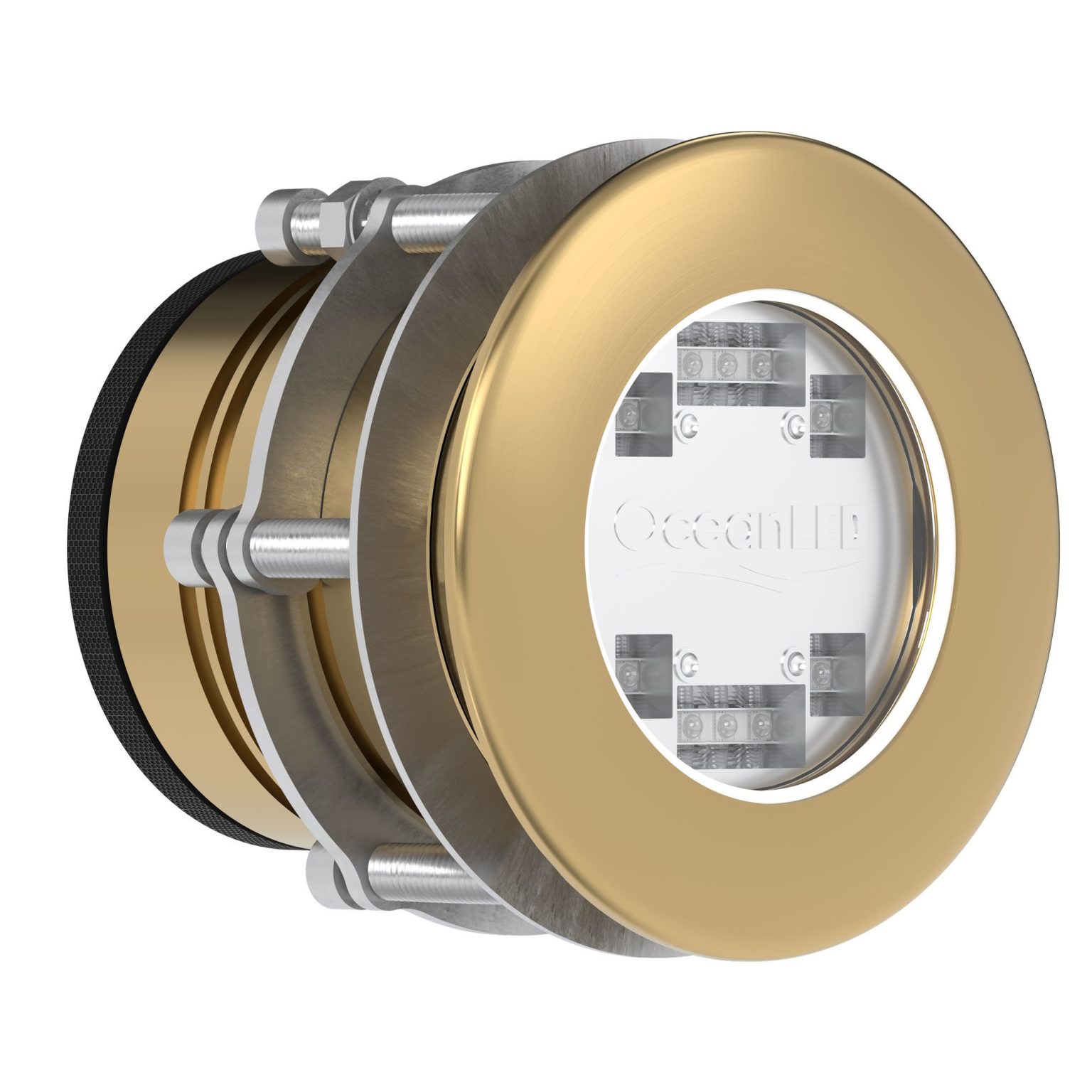

OceanLED Explore E3 E3009BW underwater light illuminates the ocean floor with 5,600 lumens. Ideal for outboard lower unit installations, this compact light features a rectangular beam, fish strobe mode, and simple toggle control.

Shipping & Delivery

DHL Courier delivery

2-3 Days

Free 30-Day returns

Warranty 1 year

Description

OceanLED Explore E3 XFM

Model: E3009BW

New generation innovative, efficient reflector optic.
20° beam produces a blade of light under the water that penetrates further.
A true 90° wide-angled, focused top beam lights up a large area of water, flooding it with light.
Reduced installation time.
Fish strobe mode.
Same light output as Sport Series.
Up to 5,000 Fixture Lumens*
Rectangular Beam
Compact design and built in driver.
Simple toggle control.
Ultra low profile outer bezel.

The Explore E3 has the most advanced optics available on the market.

The mix of optic / electronics / form factor / built in driver / plug and play work together to make the most advanced underwater light series available in the market.

All aspects of the design including the clamping kit make installation quicker and simpler.

The compact size and built in driver mean less space is required inside the vessel, allowing installation in tight areas.

Specifications

Lumens (Dual Colour)	5,600
Fixture Lumens (Dual Colour)	3,500*
Min-Max Operating voltage DC	9-32V DC
Current / Amp draw Dual Colour (12V DC / 24V DC)	3.6A / 1.7A
Min-Max Operating voltage AC (Optional)	100V – 240V AC
Current / Amp draw Dual Colour (110V AC / 230V AC)	430mA / 210mA
Driver type	Internal
Total weight	1.2kg (2.65lbs)
Total Diameter (Including Flange)	105mm (4.13")
Diameter Of Body	80mm (3.15")
Profile Of Fixture	4mm (0.16")
Length	97mm (3..8")
Minimum Space Required Inside The Hull	170mm (6.55")
Hole Cut-Out	83mm (3.25")
Material (Mounting Tube)	AB2 Aluminium Bronze
Material (Light Body)	Aluminium
Boat size	0-10m
Transom / Hull spacing	0.5-1.2m (2-4’)
Installation depth below waterline	25-30cm (10-12")
