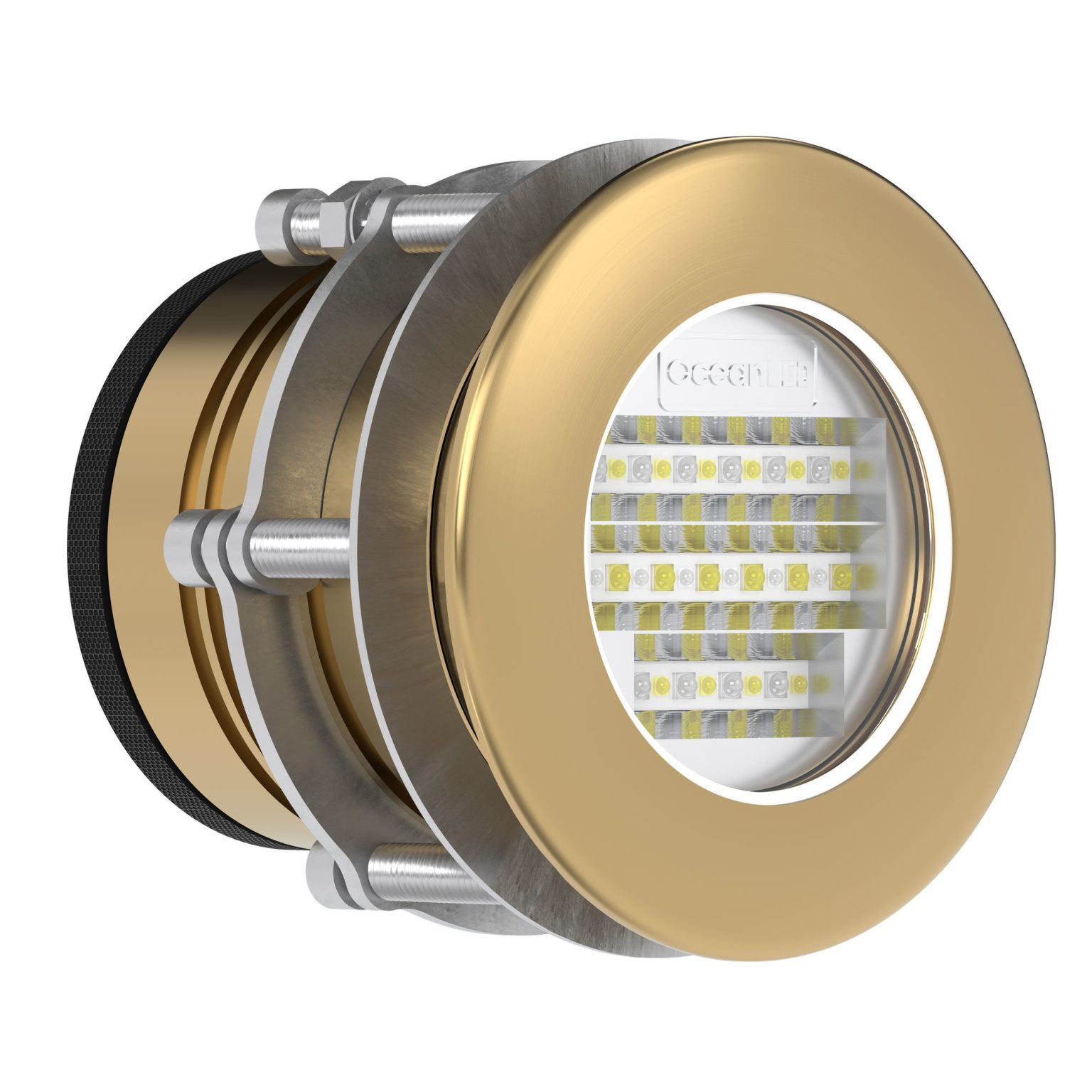

OceanLED Explore E6 XFM Dual Blue/White Light

Name: OceanLED Explore E6 XFM Dual Blue/White Light
Brand: Ocean LED
SKU: WT-OLEE6009BW
Availability: OutOfStock

Original price was: $2,974.79.Current price is: $2,679.99.

Out of stock

Use the coupon code WELCOME5 at checkout to get 5% off on your first order

Add to wishlist

Compare

SKU: WT-OLEE6009BW Categories: Electrical & Lighting, Under Water Light, WT Tags: Electrical & Lighting, Lighting, Under Water Light

OceanLED Explore E6009BW underwater LED light for outboard lower unit, featuring innovative reflector optic, 20° side beam, and 90° wide-angled top beam, providing up to 11,000 fixture lumens and compact design for easy installation.

Description

OceanLED Explore E6 XFM

Model: E6009BW

New generation innovative, efficient reflector optic.
20° side beam produces a blade of light under the water that penetrates further.
A true 90° wide-angled, focused top beam lights up a large area of water, flooding it with light.
Reduced installation time.
Fish strobe mode.
Control by switch or by DMX.
Up to 11,000 Fixture Lumens*
Rectangular Beam
Compact design and built in driver.
Simple toggle control.
Ultra low profile outer bezel.

OceanLED Explore E6 is the ultimate choice, flush mount underwater LED light for those who want to be seen.

The mix of optic / electronics / form factor / built in driver / plug and play work together to make the most advanced underwater light series available in the market.

All aspects of the design including the clamping kit make installation quicker and simpler.

The compact size and built in driver mean less space is required inside the vessel, allowing installation in tight areas.

The OceanLED Explore E6 has a variety of ways you can control the lights such as switching colours, selecting Strobe Mode or Dynamic Audio Mode.

Specifications

Lumens (Dual Colour)	19,000 19,000
Fixture Lumens (Dual Colour)	11,000*
Min-Max Operating voltage DC	10-32V DC
Dual Colour Current / Amp draw (12V DC / 24V DC)	7.8A / 4.7A
Min-Max Operating voltage AC	100V – 240V AC
Dual Colour Current / Amp draw (110V AC / 230V AC)	1,190mA / 570mA
Driver type	Internal
Boat size	20m +
Transom / Hull spacing	0.5 – 1.2m (2-4’)
Installation depth below waterline	25 – 30cm (10-12")
Total weight	1.25kg (2.76lbs)
Total Diameter (Including Flange)	105mm (4.13")
Diameter Of Body	80mm (3.15")
Profile Of Fixture	4mm (0.16")
Length	97mm (3..8")
Minimum Space Required Inside The Hull	170mm (6.55")
Hole Cut-Out	83mm (3.25")
Material (Mounting Tube)	AB2 Aluminium Bronze
Material (Light Body)	Aluminium
